Emulsion Types, Stability Mechanisms and Rheology: A Review

Sweeta Akbari1* ; Abdurahman Hamid Nour2

1,2Faculty of Chemical & Natural Resources Engineering, Universiti Malaysia Pahang, Lebuhraya Tun Razak, 26300 Gambang, Pahang, Malaysia.

Abstract

Emulsions have been widely used in different industrial processes. The development and production of good quality emulsions depend on the knowledge of emulsion preparation, stability mechanisms and rheological studies. To form stable emulsions, an emulsifier is required to reduce the droplet sizes of the emulsions and enhance the emulsion stability. The purpose of this review article is to provide information about types of emulsions, stability mechanisms and rheological studies as well as factor affecting the stability of emulsions.

Keywords:Emulsion, Emulsion type, Stability mechanism, Viscosity, Droplet size.

1. Introduction

An emulsion is a mixture of two immiscible liquid phases where one phase is dispersed into another. Basically, an emulsion is consisting of a continuous phase which is known as external phase, where the droplets are dispersed, and a dispersed phase which is defined as internal or discontinuous phase[1]. Emulsions are found in different industries such as food, pharmaceutical, agricultural, cosmetics, and petroleum [2]. An emulsion is not contained only water and oil; it may also contain some solid particles and even gas. Inherently, an emulsion is an unstable system due to the unfavorable contact between oil and water phases. Although, some emulsions are stable as a result of the small drop sizes and the existence of interfacial film, which surrounds the drops [1, 3, 4] . To form an emulsion a mechanical force is required to disperse one phase into another. However, the emulsions formed without adding any surface active material would not be stable, and the emulsion phases will start to separate in different layers based on their density differences. Therefore, addition of surfactants are necessary to make a stable emulsion for a period of long time.

To understand more about the emulsions, this review is focused on the study of emulsions types, stability mechanisms and rheological studies.

2. Types of Emulsions

Essentially, there are three types of emulsions which are water-in-oil (W/O), oil-in-water (O/W), and complex emulsions such as water-in-oil-in-water (W/O/W). The complex emulsion also known as a multiple emulsion [5]. The three types of emulsion are displayed in Figure 1.

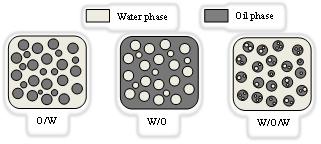

Figure-1. Classification of oil emulsions.

Typically, if the oil is dispersed phase, the emulsion is named O/W, but if the aqueous medium is the dispersed phase, the emulsion is named W/O [6]. On the other hand, the multiple emulsions are complex systems. They can be considered as emulsions of emulsions.

2.1. Water-In-Oil Emulsions (W/O)

A water-in-oil emulsion is the type of emulsions which the continuous phase is usually hydrophobic materials such as oil and the dispersed phase is water [7]. More than 95% of the crude oil emulsion formed in the oil field are the W/O type [8]. The W/O emulsions contain three substances such as; a solvent, a surfactant, and water as demonstrated in Figure 2.

Figure-2. W/O emulsion and emulsifiers on the surface of the dispersed phase (Water).

These compositions play a very important role in the formation of W/O emulsions [9]. Several studies have shown that the stability is the most important characteristic in W/O emulsion and generally these emulsions stabilized with natural surfactants such as resin and asphaltenes Fridjonsson, et al. [10]. Fingas and Fieldhouse [11] investigated that the mixture of W/O classified into four states: stable, mesostable, unstable, and entrained water. Stable emulsions are brown in appearance and contain 60 to 80% of water. Mesostable emulsions are founded brown or black and have properties are between stable and unstable emulsions such as O/W emulsions. Unstable emulsions are the emulsions that rapidly separate into two phases’ water and oil in a short time. Finally, the entrained water is black in appearance and has 30 to 40% of water content for a few hours. Eventually, it will remain about 10% in a period of one week. Among these classes only stable and mesostable are considered different from the two other states and they can be characterized as an emulsion.

2.2. Oil-In-Water Emulsions (O/W)

An oil-in-water emulsion is the emulsion in which the oil exists as the dispersed phase and water as the dispersion medium or continuous phase as shown in Figure 3. In the petroleum industry, the emulsion of W/O or O/W both can cause huge financial losses if not treated properly [12]. However, the emulsions of W/O are more common than O/W, thus O/W emulsions are often pointed as reverse emulsions.

Figure-3. O/W emulsion and structure of emulsifiers on the surface of the dispersed phase (Oil).

2.3. Multiple Emulsions

Multiple emulsions such as water-in-oil-in-water (W/O/W) and oil-in-water-in-oil (O/W/O) can be found in some cases. Usually, multiple emulsions are stabilized using a combination of hydrophilic and hydrophobic surfactants. The Multiple emulsions are more complex and contain very small droplets suspended in larger droplets that are also dispersed in a continuous phase. For instance, the emulsions of W/O/W consist of water droplets entrapped in bigger oil droplets that are sequentially suspended in a continuous water phase as shown in Fig.1. Moreover, these emulsions require at least two emulsifiers to be presented in the system, one emulsifier should has a low (HLB), where another should own a high HLB [13-16] .

3. Emulsion Formation

The process of emulsion formation is called “emulsification”. Emulsification is a dynamic and non-spontaneous process, and energy is required to produce the droplets. The emulsification process usually requires a considerable amount of mechanical energy, to disperse one of the liquids in the form of small droplets in the continuous phase. There are several methods of emulsification including; simple shaking, mixing with rotor-stator systems, liquid injection through porous membranes, or high pressure homogenizers and ultrasound generators. To break up a droplet into smaller sizes, the form of the droplet must be changed and this deformation occurs during the shearing or stirring of the emulsion [17, 18]. The process of droplet deformation and breakup is shown in Figure 4.

Figure-4. Droplet deformation during the emulsification process[19].

The main problem in production of crude oil is the formation of an emulsion stabilized by heavy crude oil components such as asphaltenes, resins, and waxes. In the oil field the most common emulsion is the W/O type, and these emulsions are very stable due to the existence of natural surfactants such as asphaltenes, and resins [20]. For the formation of an emulsion three conditions are necessary:

The emulsion characteristics are changeable from the beginning of the formation to their full resolution, and they depend on various factors such as temperature, agitation speed, time, and pressure. To form a stable emulsion, an emulsifying agent must be added to the system.

4. Stability of Emulsion

The emulsion stability related to the type and amount of surfactants. These surfactants promote the stability of the emulsion by forming films around the water drops in water/oil interfaces. The formation of films increase the stability of the emulsion by increasing interfacial viscosity and decreasing interfacial tension (IFT) [21]. It has been investigated that the parameters such as water concentration, mixing speed, and temperature can affect to the emulsion stability [22, 23]. By adding energy to the system the particles will break down into smaller sizes and finally the emulsion becomes more stable which will not be easy to treat.

The physical characteristic of oil/water interfacial films can be changed by temperature, and the emulsion stability can be affected by surfactant solubility in greasy and aqueous phase. Furthermore, by increasing the temperature reduction can be seen in emulsion viscosity, especially in the oily phase of the emulsion [1] Emulsions are thermodynamically unstable and the properties of emulsions are changeable in a certain period of time. Therefore, in terms of better understanding related to mechanism of emulsion stability it is very important to discuss about the thermodynamic and kinetic stability of the emulsions.

4.1. Thermodynamic and Kinetic Stability of the Emulsions

Thermodynamic describes about the process which occurs during emulsification or after homogenization. Mehta and Kaur [24] claimed that in thermodynamic approach the stability or instability of the emulsion is related to emulsion droplet size. Thermodynamically, an emulsion is unstable system due to the undesirable contact between oil and water molecules, and they tend to break over a period of time. Furthermore, for stabilizing these kinds of emulsions the emulsifying agents (surfactants) can be used to promote their stability. To achieve kinetically stabilized emulsions the addition of stabilizing agents are necessary [25].

5. Mechanisms of Emulsion Stabilization

Emulsions are found in various industries, from food and pharmaceuticals to petroleum production and refining. The emulsion stability results from the existence of interfacial barrier preventing coalescence of the dispersed water droplets. Generally, the emulsion stability is influenced by the interface film and mechanism of surfactant adsorption. There are four mechanisms by which emulsions are stabilized. 1) electro- static repulsion; (2) steric repulsion; (3) the Marangoni- Gibbs effect; and (4) thin film stabilization [21]. The following subsections discuss about these four mechanisms.

5.1. Electrostatic Repulsion

Electrostatic force results from the interaction between the electrical double layers around the charged droplets which tend to prevent droplet contact (Figure 5).  This mechanism occurs by adsorption of an ionic surfactant [26]. However, electrostatic repulsion does not play an important role in the stabilization of water-in-oil emulsions, because of the low dielectric constant of the continuous phase. The emulsion stability is not due to the electrostatic forces, but it is because of the strength of the interfacial film surrounding the dispersed droplets [21].

Figure-5. Schematic representation of electrostatic stabilization [27].

5.2. Steric Repulsion

Steric stabilization is generally found in the systems stabilized by non-ionic surfactants and polymers [28]. In this mechanism, the dispersed water droplets will be covered by surfactant molecules and the surfactant tail adsorbed on the surface of the particles prevents droplets to have a close contact as shown in Figure 6. Mainly, this kind of stabilization is responsible for the stabilization of W/O emulsions, since these types of stabilizer contain a non-polar part with strong affinity to oil, and a polar part with a strong affinity to the aqueous phase or water [29].

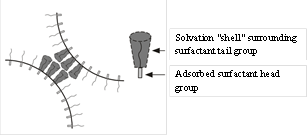

Figure-6. Schematic representing steric repulsion  [30]

5.3. Marangoni – Gibbs Effect

The Marangoni-Gibbs effect can stabilize emulsions by preventing the drainage of the continuous phase from between two opposing droplets. This effect occurs due to the deformation of the droplet surface area as they get close along together. When the droplets approach together they make a parallel surface and the film layer attempts to drain as displayed in Figure 7. Moreover, in this phenomena the mechanism of surfactant adsorption and interfacial film are responsible for the stability of the emulsion [31].

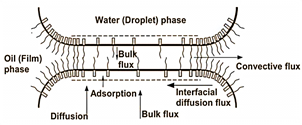

Figure-7. Emulsion stability according to the Marangoni-Gibbs effect[30].

5.4. Thin Film Stabilization

In this step, the formation of a rigid and viscoelastic film surrounds the water droplets and prevents the droplets from coalescence [32]. This process can be quite complex and depends on asphaltene chemistry, solvency and the kinetics of diffusion and adsorption [30].

6. Rheological Study of Emulsions

6.1. Viscosity

Viscosity can be defined as a measure of the internal resistance to flow, or the flow properties of the oil. The most common unit of viscosity is dyne second per square centimeter [dyne s/cm2] which is also called “Poise”. In the SI system, units are Pascal.second “Pa.s” or milliPascal seconds “mPa.s” since one mPas.s is equal to one centipoise “cP” in American Society for Testing and Materials “ASTM” standards [33]. It is well known that there are several factors that can influence on the rheological properties of an emulsion, such as water volume fraction, temperature, shear stress, and shear rate, since viscosity is the most measured properties in rheological studies of an emulsion.

According to Newton’s law of viscosity, the shear stress is proportional to the shear strain (shear rate). If the viscosity of the fluid does not depend on the shear rate is called “Newtonian fluids” and mostly dilute emulsions show this behavior. However, if the fluid’s viscosity depends on the shear rate and have a constant value it called “Non-Newtonian fluid” [34, 35]. Moreover, the rheological behavior of an emulsion can be either Newtonian or non-Newtonian depending upon emulsion [36-38] . Mathematically, Newton’s law is expressed in Equation 1 .

Where,  is the viscosity,  is the shear stress, and  is the shear rate.

Generally, the dynamic viscosity of the oil is varied from about 100 mPa.s to almost 105 mPa.s at room temperature [39]. Viscosity is one of the most important heating oil characteristics and it indicates the flow rate of the oil in fuel systems. Since the heavier oils have high viscosity the determination of this property has taken a particular role in petroleum industries. It is well known that the viscosity of the heavy oils can be increased by reducing the temperature. Therefore, the viscous oils can create many problems throughout the system, and may cause difficulties during pumping and transportation as well [40].

6.2. Droplet Size

An emulsion is a dispersion of a liquid (as droplets) inside another immiscible liquid. The size of the water droplets dispersed in the emulsion is an important quantity, as it can affect both the stability and the rheology of the emulsion. Emulsions can also be classified according to the size of the droplets. The droplet size of emulsions depends on some factors such as procedure of emulsification, mixing speed, surfactant type and concentration. Petroleum emulsions have a droplet size in the range of macro and micro. The macro and micro-emulsions can be found in both water-in-oil and oil-in-water emulsion types [41-43] . Figure 8 shows the droplet size of a W/O emulsion.


Figure-8. Microscopic image of W/O emulsion.

The droplet size and droplet size distribution are important for stability and viscosity properties of the emulsion. In kinetic approach, those emulsions are stable when the number of droplet, droplet size distribution, and order of the droplet do not change significantly over the period of storage [44]. Moreover, increasing the concentration of the emulsifier can reduce the droplet size of emulsion, which could enhance the emulsion stability.

In the case of droplet size, if the concentration of emulsifier is low, the ability of covering the droplets is low as well, thereby the droplets are likely to coalesce with their neighbors and form larger droplets. Surface active materials play an important role in stability of water-in-oil emulsion. The function of emulsifiers is to lower the interfacial tension between water and oil, and to form a cohesive interfacial film around the droplets hence preventing the coalescence of water droplets which finally leads to a stable emulsion [45]. In addition, the droplet size distribution depends on the stirring speed and volume of the dispersed phase (water). As the amount of water increases the droplet size and intensity of the distribution increase as well [19].

7. Conclusions

Emulsions are considered very important in everyday life. A huge number of products from food to cosmetics deal with emulsions such as mayonnaise, milk, butter, creams, shampoos and many other daily products. This review focused on the study of emulsion types, stability mechanisms and rheology. Based on the reviewed articles, it was found that emulsions stability is related to many factors such as phase ratios, surfactant concentrations, agitation, temperature, and other existed compounds in the system. It is also found that in a stabilized emulsion by a surfactant, the surfactant monomers surround the droplets like a thin film and prevents them from the mechanism of coalescence.

DOI:10.53894/ijirss.v1i1.4
Funding: This study received no specific financial support.
History: Received:12 January 2018/Revised: 2 March 2018/Accepted: 15 March 2018/Published: 21 September 2018
Acknowledgement:Both authors contributed to the conception and design of the study.
Competing Interests: The authors declare that they have no conflict of interests.
Transparency:  The authors confirm that the manuscript is an honest, accurate, and transparent account of the study was reported; that no vital features of the study have been omitted; and that any discrepancies from the study as planned have been explained.
Ethical: This study follows all ethical practices during writing
